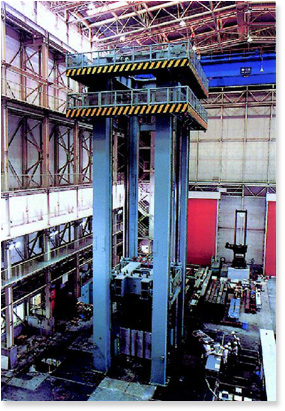

A Block D7 30 MN large-scale universal testing machine

Able to test behavior patterns of complex structural materials.

Specifications
Maximum
loaded force
Compressed : 30MN
Extended : 10MN
Positive bend during testing : 12MN
negative bend during testing : 3MN
Effective
strokes
1000mm
Dimensions Maximum height : 15m,
Maximum span : 30m,
Maximum width : 3m
Functions
Multifunctional testing machine which enables static loading and low cycle repetition load testing
